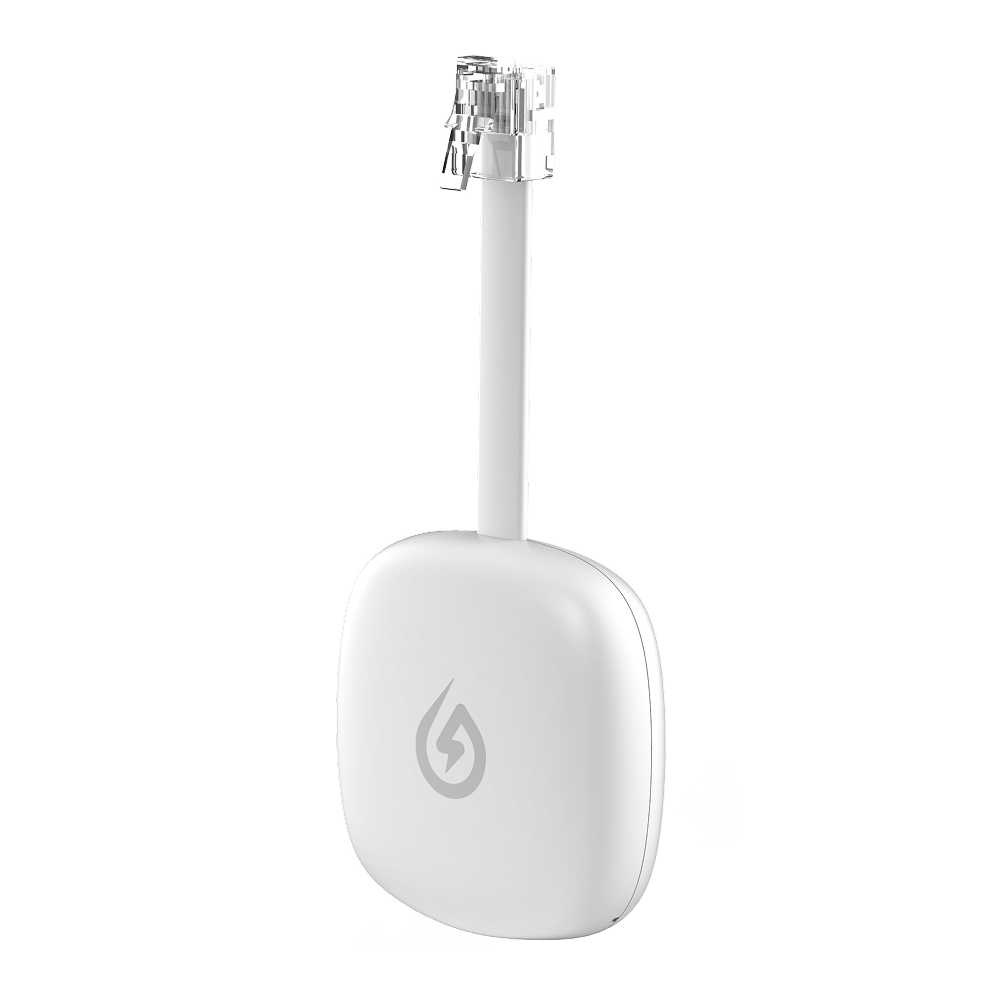

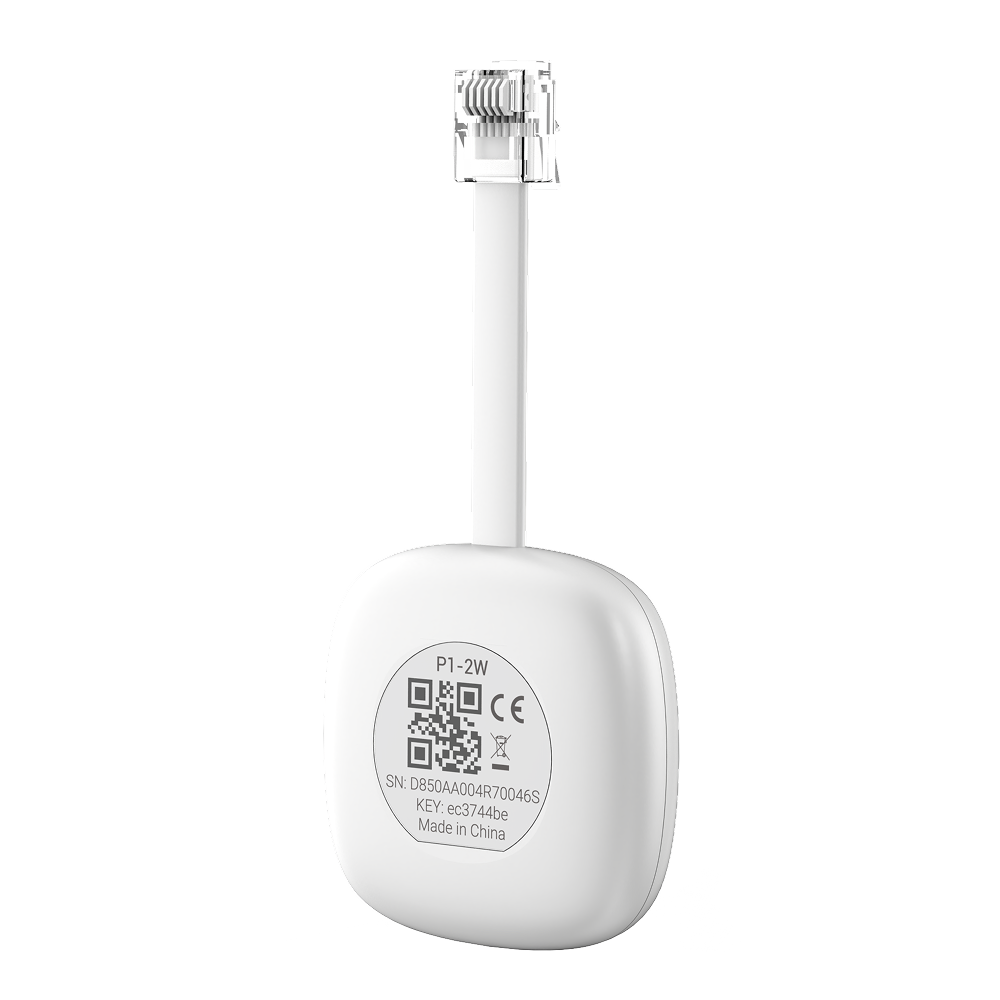

Solarman P1 Meter Reader

Name: Solarman P1 Meter Reader
Brand: Indevolt DE
SKU: P1-READER
Price: 29.00 EUR
Availability: InStock

29,00€

By collecting operating status and consumption data from the meter, the P1 Meter Reader can carry out long-term and efficient monitoring of the meter system. It can connect to a single P1 meter via an RJ12 interface to receive consumption data from the meter. Additionally, it sends the data to the monitoring platform via WiFi. Real-time status and historical data can be displayed with graphs, providing an intuitive and clear insight into the system.
(*Modern meters in the Netherlands, Lithuania, Finland and Belgium have a P1 port and are compatible with the P1 Meter Reader.)

Overview

Convenient Payment
Reliable Delivery

30-Day Return Policy
10-Year Warranty
Free and Fast Shipping
Lifetime Customer Support
30-Day Price Guarantee

P1 Meter Reader Features

User-Friendly

Standard Bluetooth network configuration.
Compact design, requires no additional space
Direct power from the P1 Meter Reader with plug-and-play functionality

High Compatibility

Universal COM protocol for broad compatibility
Type-C interface resolves power supply issues for P1 Meter Reader under DSMR 5.0

Outstanding Performance

Accurate measurement of electrical energy data
Supports local API interface for efficient access to home energy management systems (HEMS)
Supports local integration with micro-storage systems

Stable and Reliable

Remote management software for visual data handling
Data encryption ensures secure and reliable external transmission

Compliant with EN303645

Adheres to ETSI EN 303 645 standard

P1 Meter Lezer Parameters

Communication Parameters

Remote Communication

2.4GHz WiFi
WiFi Standard

802.11b/g/n
WiFi Frequency

2.412GHz - 2.472GHz (CH1-CH13)
WiFi Transmission Power

802.11b: +17dBm @ 111Mbps
802.11g: +15dBm @ 54Mbps
802.11n: +14dBm @ HT20, MC57
Bluetooth Standard

BLE5.0
Bluetooth Frequency

2.402GHz-2.480GHz
Bluetooth Transmission Power

Max 15dBm

Hardware Parameters

Data Interface

P1-RJ12
External Interface

USB Type-C & RJ12
Working Voltage

DC 5.0V ±5%
Working Power

<1W
Indicator Light

P1 green light indicates connection status with the meter
WiFi blue light indicates connection status with the server
Memory

8MB FLASH
Working Temperature

-20°C to +50°C
Working Humidity

10% to 90% RH (non-condensing)
Storage Temperature

-30°C to +60°C
Storage Humidity

≤ 40% RH (non-condensing)

Software Parameters

Number of Connections

One P1 meter
Serial Communication Rate

Default: 115200 bps (configurable)
Data Transmission Interval

Default: 5 mins (configurable between 60-600 seconds)
Firmware Upgrade

Remote upgrade / Local upgrade
User Configuration

APP / Web page
Software Watchdog

√
Others

Real-time Control

Work with Your Smart Meter

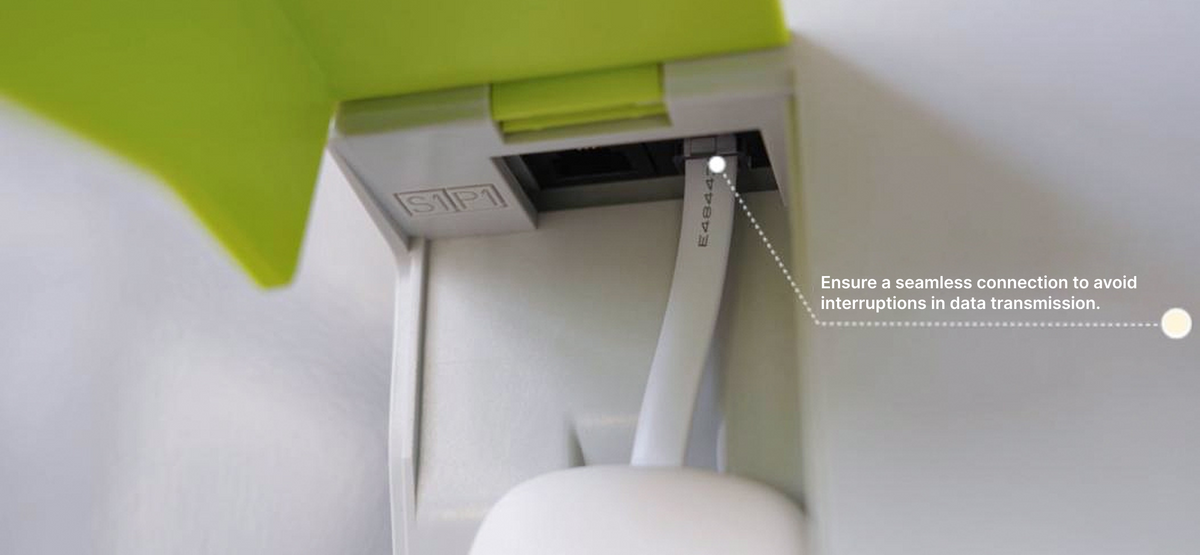

The P1 Meter Reader plugs into the P1 port of your smart meter and displays the electricity and gas consumption of your home. The P1 Meter Reader is compatible with most modern meters in Europe. Just plug it in, connect to Wi-Fi, and you’re ready to go. Check if my smart meter is compatible? to ensure that it is compatible.

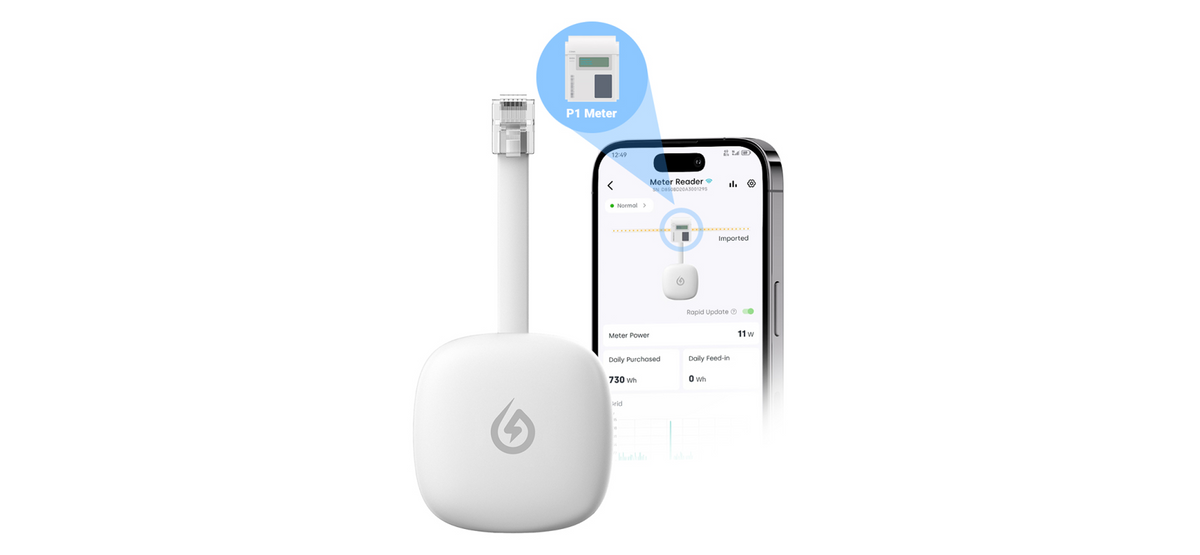

View Live or Explore Historical Data

With the app, you can see real-time events or revisit past data at any time.
