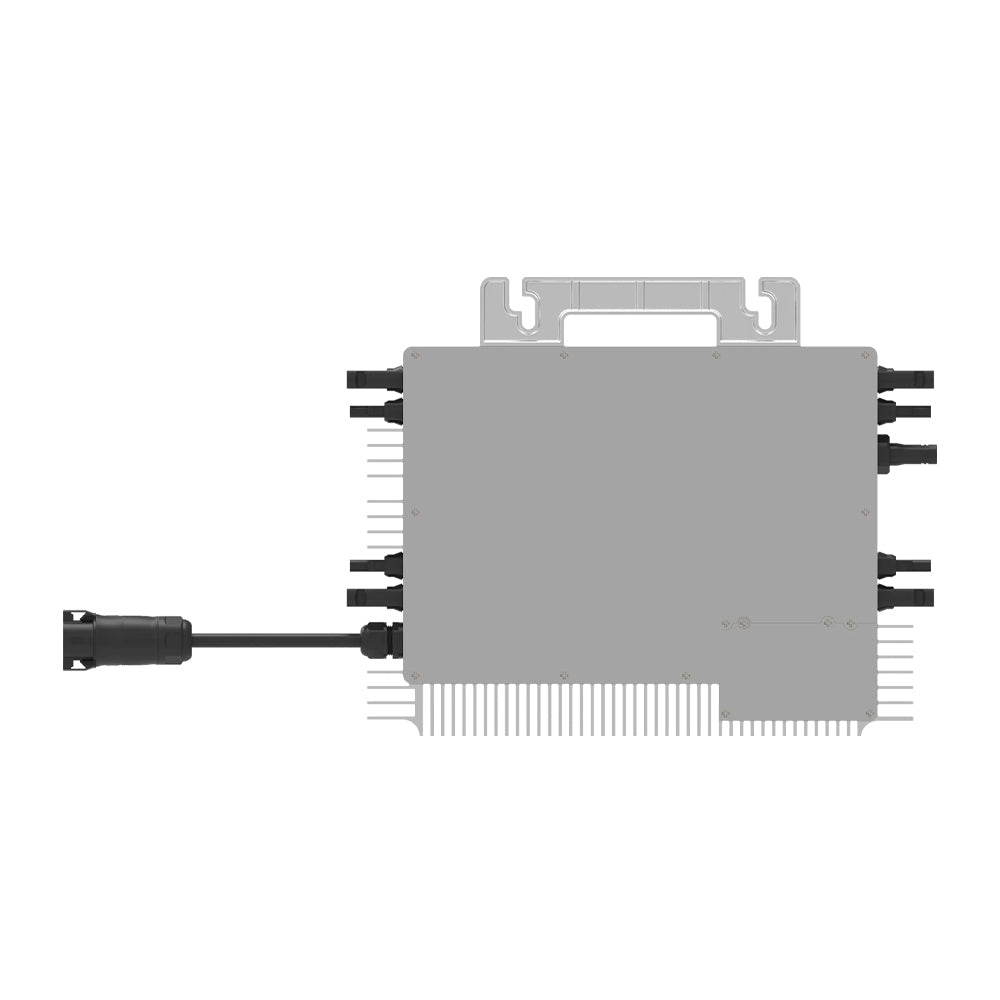

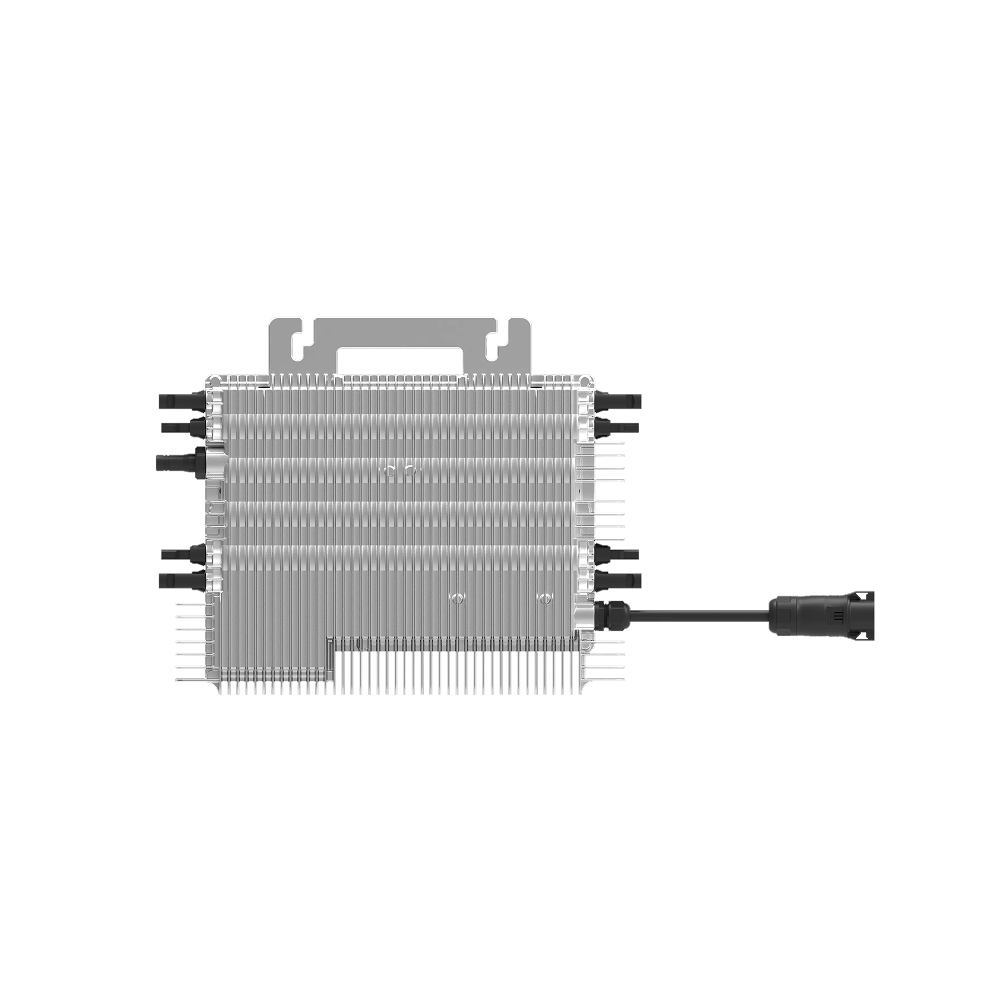

Technical Data
Max. PV input power (W)
: 210-700 (4 pcs)
Max. PV input voltage (V)
60
MPPT voltage range (V)
25-55
Number of MPPT
4
Rated AC output power (W)
2000
MPPT efficiency
>99%
Operating temperature range (°C)
-40 to +60 °C; >45 °C power reduction
Waterproof
IP67
Thermal protection
Yes
Weight (kg)
Wifi
Dimensions of housing (W x H x D mm)
311 x 250.5 x 36.5 (without connectors and brackets)
Gewicht (kg)
5.1
Warranty
15 years
Technical Data
Max. PV input power (W)
210-700 (4 pcs)
Max. PV input voltage (V)
60
MPPT voltage range (V)
25-55
Number of MPPT
4
Rated AC output power (W)
2000
MPPT efficiency
>99%
Operating temperature range (°C)
-40 to +60 °C; >45 °C power reduction
Waterproof
IP67
Thermal protection
Yes
Communication
Wifi
Dimensions of housing (W x H x D mm)
311 x 250.5 x 36.5 (without connectors and brackets)
Weight (kg)
5.1
Warranty
15 years
