Technical Data
Manufacturer Model
JA M54D41-450/LB
Cells
108 (6*18) Monocrystalline
Maximum power (Pmax)
450W
Maximum voltage (Vmp)
32.65V
Maximum current (Imp)
13.63A
Open circuit voltage (Voc)
39.10V
Short-circuit current (Isc)
14.40A
Temperature coefficient of Voc
-0.260%/°C
Temperature coefficient of Isc
+0.046%/°C
Temperature coefficient of Pmax
-0.300%/°C
Normal operating cell temperature (NOCT)
45 ± 2°C
Operating temperature
-40°C to +85°C
Maximum system voltage
1500V DC
Power tolerance
0 to +5W

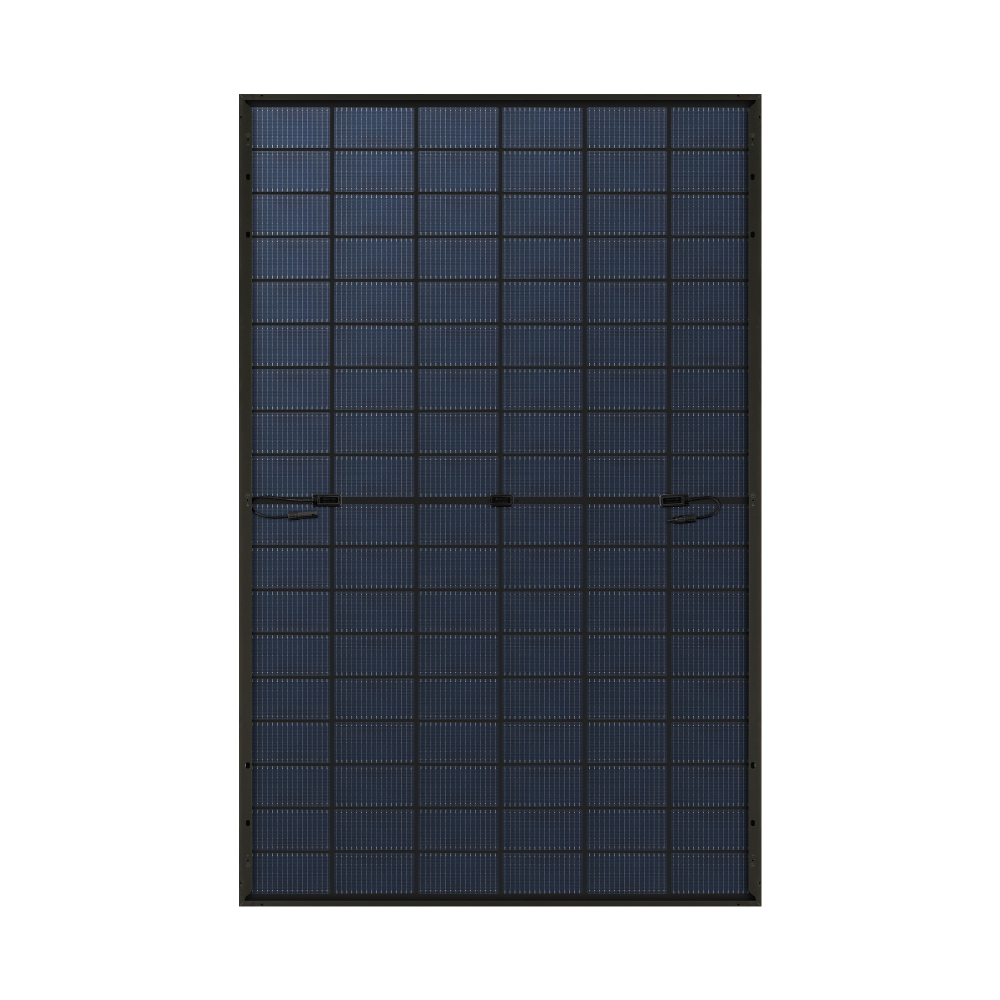

Bifaciality
80% ± 10%
Junction box
IP68, 3 diodes
Weight
22 kg (1 piece)

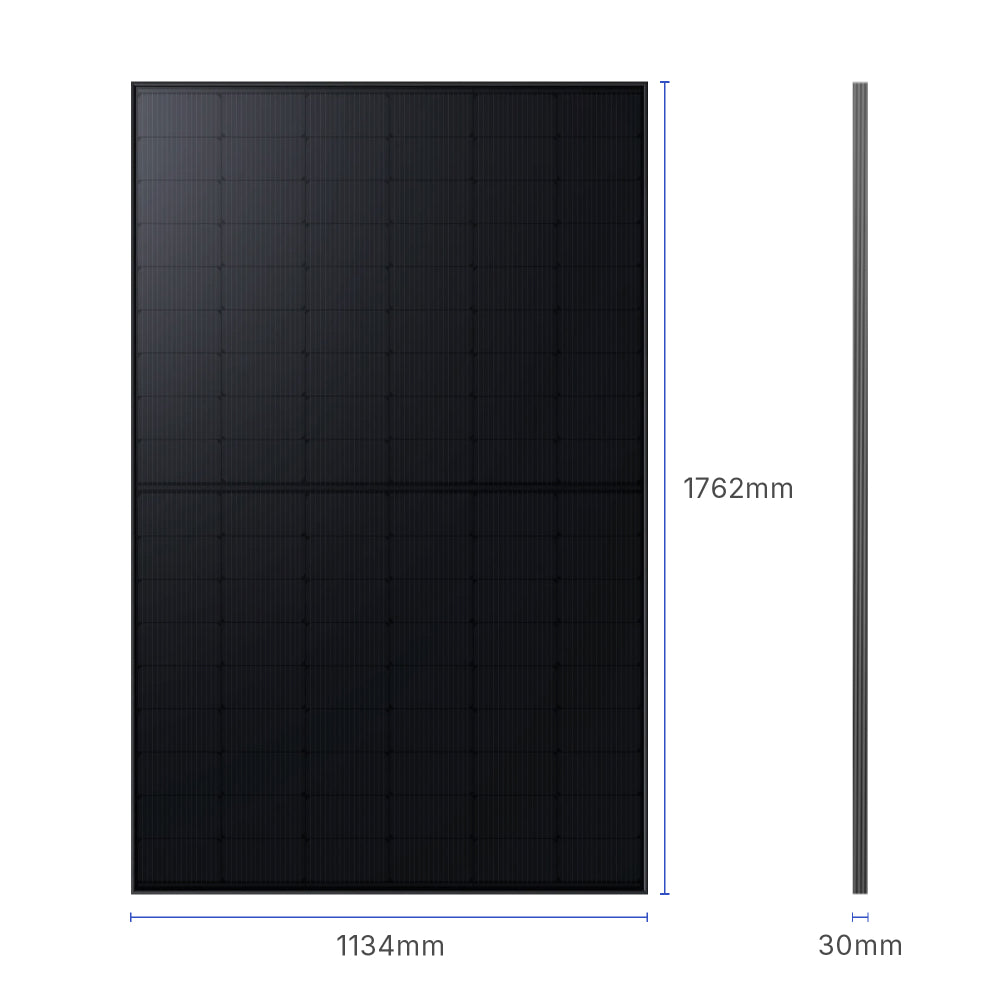

Dimensions
1762x1134x30 mm
